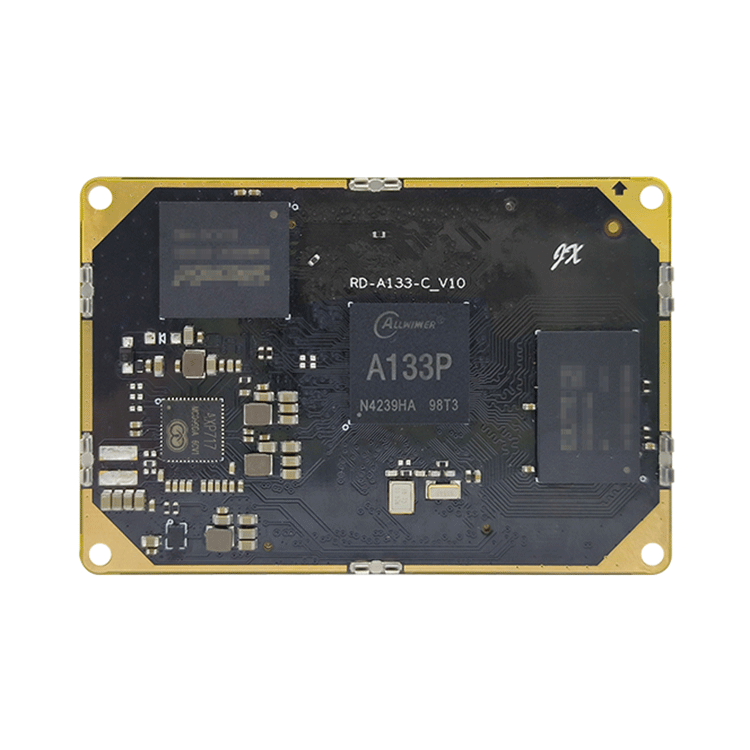

size

Length 60mm x Width 40mm x Height 4.7mm

CPU

Allwinner A133 quad-core A53 clocked at 1.5GHz

GPU

GPU GE8300

Memory

LPDDR4 comes standard with 2G (1G/4G is optional in batches)

memory

eMMC standard 8G (4G/16G/32G/64G batch optional)

power management

AXP717 supports standby, key switch

Operating Voltage

Input voltage 5V, maximum power less than 2W (without any peripherals)

support system

Android

operating temperature

-10 to +75 degrees

USB interface

2 independent channels, one channel HOST2.0, the other channel OTG2.0

UART serial port

6 channels of TTL 3.3V level, one of which is Debug

PWM interface

4-way PWM (remark: with multiplexing function)

LVDS display

1 channel dual 8LVDS, maximum support 1080P 60fps

RGB display

1 channel RGB 888 output supports maximum 720P 60fps

MIPI display

1 channel MIPI DSI output supports 1080P 60fps

voice output

1 left and right channel output

Voice input

2 voice input

ethernet

One Ethernet, GMAC interface

SPI interface

3-way SPI interface

I2C interface

6-way I2C interface

GPIO interface

102-way GPIO (remark: with multiplexing function)

CAN bus

1 channel CAN BUS 2.0 bus

SDIO interface

2 SDIO interfaces, one TF card, the other WIFI

ADC interface

2 ADC interfaces

Camera

2-way MIPI CSI CAMERA built-in 1300W ISP interface

ADC interface

2-way 12bit ADC input interface

SDIO interface

2-way SDIO interface, one-way WIFI, another way TF card

System Upgrade

Support local USB upgrade

size

160mm long*100mm wide*14mm high

CPU

Allwinner A133 quad-core A53 main frequency 1.5G

GPU

GE8300

Memory

LPDDR4 standard 2GB optional 1GB/4GB

memory

EMMC 5.1 standard 8GB optional 32GB/64GB

power management

AXP717

Operating Voltage

12V 2A and above

support system

Android 10

operating temperature

-10 to +75 degrees

USB interface

7-way USB port (4-way external, 3-way plug-in)

The external one is OTG2.0

camera interface

2-way 2+4LANE MIPI camera interface, built-in ISP up to 800W

serial port

3 UART serial ports (one of which is debug, can be changed to ordinary serial port)

SPI interface

1 way external SPI

4G interface

4G module can be connected to the Internet (USB)

Voice input

2 microphone inputs

voice output

2-way headphone output + 1-way speaker output 5W/8 ohm

TF card

Support TF card

Other extension interface

13 available GPIO

MIPI display

MIPI display output up to 1920x1080

LVDS display

Dual 8 LVDS output up to 1920x1080

Ethernet 1

1 channel 10M/100M/1000M RTL8211F

WiFi

WIFI 2.4G (AP6212)

Bluetooth

1CH 2.4G Bluetooth+BLE(AP6212)

ADC interface

2 ADC interfaces

indicator light

1-way GPIO controllable indicator light interface

RTC real time clock

External button battery power-down time storage (independent 8563) power consumption is less than 1uA

System Upgrade

Support local USB upgrade

function list

Android 10.0
Linux Kernel 4.9

hardware function

10.1 inch LVDS0 screen + I2C touch (1204x600)

✔

10.1 inch LVDS1 screen + I2C touch (1204x600)

✔

7 inch LVDS screen + I2C touch (1024x600)

✔

MIPI display (5 inch 720x1280 plus touch assembly)

✔

MIPI display (7 inch 720x1280 plus touch assembly)

✔

MIPI display (8 inches 800x1280 plus touch assembly)

✔

MIPI display (8 inches 1200x1920 plus touch assembly)

✔

MIPI display (10 inch 800x1280 plus touch assembly)

✔

MIPI display (10 inch 1200x1920 plus touch assembly)

✔

Dual 8 LVDS0 1920x1080 displays

✔

Dual 8 LVDS1 1920x1080 displays

✔

LVDS interface

✔

usb camera

✔

USB HUB x6 interface

✔

USB OTG HOST interface

✔

USB OTG device interface

✔

MIPI camera interface

SDIO AP6212 WIFI 150Mbps

✔

SDIO AP6212 BT 4.2

✔

Ethernet RTL8211F 10M/100M/1000M

✔

trumpet

✔

microphone input

✔

Headphones (with headphone detection function)

✔

Serial port x4

✔

TF card

✔

RTC time save 8563

✔

LED light (into the system breathing light)

✔

4G communication EC20

✔

driver list

AXP717 PMIC driver

√

Ethernet RTL8211CP driver

√

SDIO WIFI+BT AP6212 driver

√

UART serial driver

√

LVDS display driver

√

I2C touch screen driver

√

RTC time saving driver

√

CVBS output driver

EC20 driver

√

SPI driver

√

ADC driver

√

I2C driver

√

PWM driver

√

SDIO driver

√

GPIO driver

√

USB drive

√

software function

Dual screen simultaneous display

√

Dual-screen different display (LVDS_HDMI)

√

Simultaneous preview of usb dual cameras

√

WIFI hotspot

√

USB to serial port

√

USB port

√

WIFI miracase receiver

√

reset

√

body sleep wake up

√

Power parameters

Voltage

6.5V

12V

15V

ripple

--

50mV

120mV

electric current

162mA

--

--

supply current

(not connected to other peripherals)

Boot current

165mA

229mA

376mA

Play sound

172mA

192mA

319mA

supply current

(connected to the display)

LVDS 1024x600

325mA

362mA

475mA

environment

Relative humidity

--

65%

75%

Operating temperature

-10 °C

--

75 °C

storage temperature

-30 °C

-0 °C
