Product properties

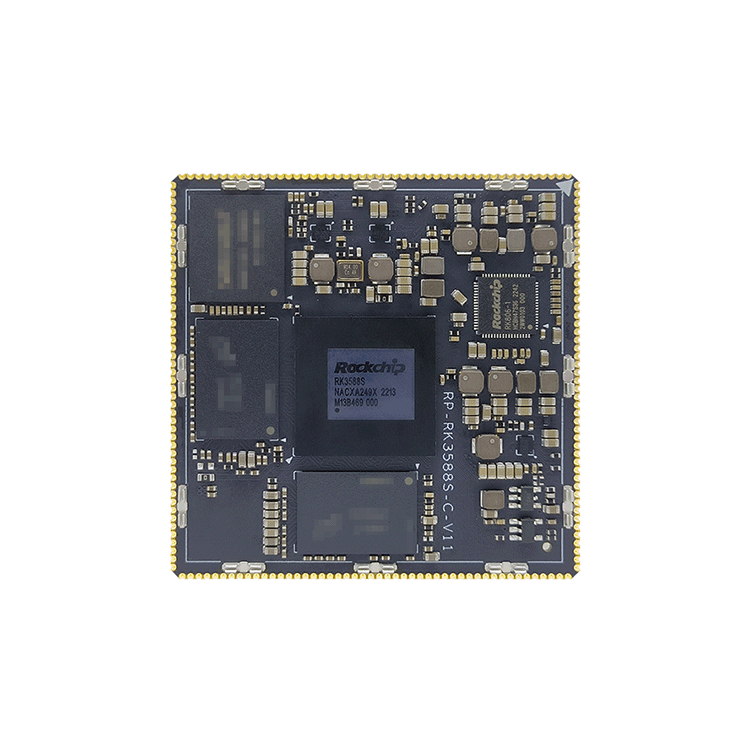

Rockchip RP-RK3588S core board

SHENZHEN RONGPIN ELECTRONIC TECHNOLOGY CO.,LTD.
Contact information: 0755-235747363
Address: 3rd Floor, Block A, Phase II, Huafeng International Robot Industrial Park, Xixiang Street, Baoan District, Shenzhen (Gushu Metro Exit C)
Product description


CPU block diagram


Core board block diagram


Product display



Hardware index parameter

Main hardware indicators

size

50mm long*50mm wide*3mm high

connection method

stamp hole

CPU

ROCKCHIP RK3588S Octa-Core A76+A55

NPU

6T OPS

GPU

Mali G610 MP4

Memory

LPDDR4x 4GB/8GB/16GB

memory

EMMC 5.1 standard 32G/64G/128G optional 256G

power management

RK806

Operating Voltage

3.4-5.5V MAX 15W

support system

Android12/ubuntu18.04/Linux5.10+QT5.15/debian11

Operating temperature

-10 to +75 degrees

life

The continuous operation life is more than 5 years

Common interface

Core board common interface

hdmi

1 channel HDMI high-definition output supports up to 4K display

EDP

1 channel 4Lane eDP up to 1080P

DP

2-way 4Lane DP up to 4K

MIPI DSI

2-way MIPI DSI up to 2K

MIPI CSI

1 way MIPI CAMERA CSI input

I2S

Three-way I2S, two-way 8-channel/one-way 2-channel

PCIe

2-way PCIE2.0 x1

SATA

2 way SATA3.0

USB2.0

3-way independent USB2.0, one of which is OTG

USB3.0

1 way USB 3.0 interface (shared with DP)

ethernet

1 way RGMII Ethernet interface

UART

10 serial ports

SPI

4 way SPI

I2C

7-way I2C

PWM

13 way PWM

SDIO

2 SDIO interfaces, one for TF card and the other for SDIO WIFI

ADC

3-way analog ADC input interface

CAN

3 CAN buses

GPIOs

Multiplexable GPIO up to 102

upgrade

Support USB/TF card local upgrade

Function and driver support list

RP-RK3588S function and driver support list


Android 12.0

kernel5.10.66

Linux

Debian

Linux

buildroot

Linux

Ubuntu18.04

Remark

hardware function

HDMI0 1080P 4K display

✔

✔

✔

✔


ADH 4-way camera input

✔

✔

✔

✔


MIPI display (5.5 inch 720x1280 plus touch assembly)

✔

✔

✔

✔


MIPI display (7 inch 1024x600 plus touch assembly)

✔

✔

✔

✔


MIPI display (8 inches 800x1280 plus touch assembly)

✔

✔

✔

✔


MIPI display (10.1 inch 800x1280 plus touch assembly)

✔

✔

✔

✔


MIPI display (10.1 inch 1920x1200 plus touch assembly)

✔

✔

✔

✔


eDP0 Display (13.3/15.6 inch 1920x1080 plus touch assembly)

✔

✔

✔

✔


LVDS display supports single 6 single 8 double 8

✔

✔

✔

✔


LED light (into the system breathing light)

✔

✔

✔

✔


RTC (plug-in HYM8563, save power-off time)

✔

✔

✔

✔


Loudspeaker (the bottom board can be connected to 3W/8 ohm, playing sound)

✔

✔

✔

✔


Headphones (with headphone detection function)

✔

✔

✔

✔


microphone input

✔

✔

✔

✔


Camera USB interface (binocular or monocular)

✔

✔

✔

✔


AP6257 WIFI6

✔

✔

✔

✔


Bluetooth

✔





TYPE-C port (3.0 U disk/3.0 USB camera)

✔

✔

✔

✔


USB HUB

✔

✔

✔

✔


USB2.0 HOST standard A port (2.0 U disk/2.0 USB camera)

✔

✔

✔

✔


USB2.0 HOST pin header X 2 (2.0 U disk/2.0 USB camera)

✔

✔

✔

✔


Gigabit Ethernet 0 PCIE

✔

✔

✔

✔


Debug serial port

✔

✔

✔

✔


Serial port 0/1/3/4/6/7/8 (can send and receive data normally)

✔

✔

✔

✔


TF card (test the maximum 128G TF card to transfer files to each other)

✔

✔

✔

✔


Reset key (system reset function)

✔

✔

✔

✔


Upgrade button (long press to power on to enter programming mode)

✔

✔

✔

✔


4G communication

✔

✔

✔

✔


CAN1/2/3 receive and send

✔

✔

✔

✔


RS485

✔

✔

✔

✔


bus driver

PCIE driver

✔

✔

✔

✔


SPI driver

✔

✔

✔

✔


ADC driver

✔

✔

✔

✔


I2C driver

✔

✔

✔

✔


PWM driver

✔

✔

✔

✔


SDIO driver

✔

✔

✔

✔


GPIO driver

✔

✔

✔

✔


USB drive

✔

✔

✔

✔


Current parameter table

project

the smallest

typical

maximum

Power parameters

Voltage

6.5

12V

15

ripple

--

50mV



RTC (HYM8563)

0.3uA

0.9uA

1.2uA

With backplane current test

Boot current

165mA

275mA

652mA

Desktop Quiescent Current


195mA


environment

Relative humidity

--

65%

<span style="v
