CPU BLOCK DIAGRAM
CORE BOARD BLOCK DIAGRAM

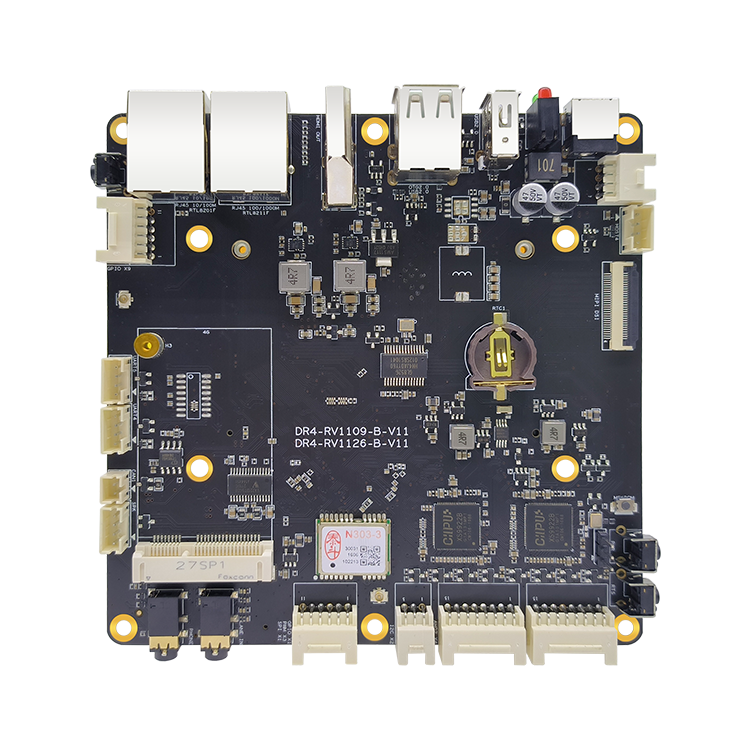

PRODUCT DISPLAY
PCB SIZE DRAWING
HARDWARE INDEX
Main hardware indicators | |
size | 180mm long x 106mm wide x 14mm high |
CPU | Ruichip RV1109 dual-core clocked at 1200MHz |
NPU | 1.2 TOPS NPU |
Memory | DDR4 comes standard with 1G (2G is optional in batches) |
memory | eMMC comes standard with 8G (16G/32G/64G optional in batches) |
Power management | RK809-2 supports dynamic power management |
Working voltage | Input voltage 12V, maximum power less than 5W (no peripherals connected) |
Support system | Linux 4.19 + QT 5.12 |
operating temperature | -10 to +75 degrees |
life | Continuous operation life is more than 5 years |
COMMONINTERFACE
Commonly used interfaces on the backplane | |
USB interface | 5-channel USB, 3-channel standard A port (one OTG), 2-channel plug-in |
UART serial port | 5 channels of TTL 3.3V level (can add chip RS232), one of which is Debug |
PWM interface | 3-way PWM 3.3V level |
SDIO interface | 2 SDIO interfaces, one for TF card and the other for WIFI |
GPIO interface | 9 available GPIO channels |
ADC interface | 5-way ADC interface |
I2C interface | 2-way I2C interface |
MIPI DSI display | 1 channel maximum 1920x1080 60fps |
Camera interface | 2-way mipi csi camera input |
fill light | 2 controllable fill lights, 1 is infrared light, 1 is white light |
Voice input | 1 silicon microphone input, the other LANE IN input |
Voice output | 1 channel left and right channel output, 5W power amplifier installed on the bottom panel |
WIFI | Support dual-band 2.4G/5G AP6256 |
Bluetooth | Support Bluetooth 5.0, support BLE mode |
Ethernet | Default connected to RGMII 100/1000M PHY RTL8211F chip |
4G | Support 4G full network module pcie interface |
Output power | Multiple power output 3.3V 5V 12V |
System upgrade | Support local USB upgrade |
RTC | Button battery interface |
CORRENT PARAMETER TABLE
project | smallest | typical | maximum | |
Power parameters | Voltage | 6.5V | 12V | 15V |
ripple | -- | 50mV | 900mV | |
current | 75mA | -- | -- | |
Supply current | Start-up current | 80mA | 115mA | 235mA |
No display, connected to USB camera | 95mA | 155mA | 336mA | |
environment | relative humidity | -- | 65% | 75% |
working temperature | -10℃ | -- | 75℃ | |
Storage temperature | -30℃ | -0℃ | 100℃ | |
